Description

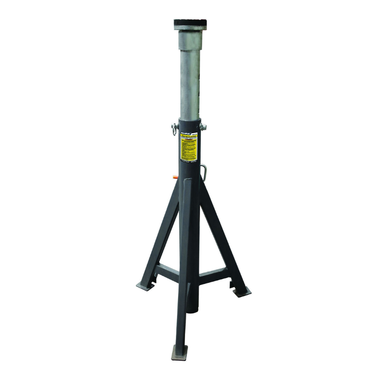

Bendpak MLS-18 Mobile High Lift Jack Stand
The MLS-18 is a support stand to be used to support raised heavy duty vehicles, to facilitate maintenance and inspection procedures. The support stand is designed to be used in sets of 4, 6 or 8 and must be placed under a level, raised vehicle, at the support points designated by the vehicle manufacturer.
Features
- 18,000-lb. max rated capacity.
- Tripod design evenly distributes weight under load.
- Each leg is equipped with a 11 square inch floor pad.
- Can be easily moved and placed under a vehicle by means of two 3″ diameter wheels.
- Equipped with a fold-away transport handle.
- Center tube is spring assisted to facilitate adjustment of the stand.
- Adjustable from 48.75″ to 74.5″.
- 9 pin positions.
- 1″ diameter self-locking ACME screw for fine adjustment of the stand height.
Specifications
| Minimum Height | 48.75″ (1,238 mm) |
| Maximum Height | 74.5″ (1,892 mm) |
| Pin Positions | 9 |
| Screw Pad Adjustment | 3.5″ (89 mm) |
| Stroke | 25.75″ (654 mm) |
| Base Diameter | 32″ (813 mm) |
| Wheels / Diameter | 3″ (76 mm) |
| Top Pad Diameter | 6″ (152 mm) |
| Stand Capacity | 18,000 lbs. (8,165 kg) |
