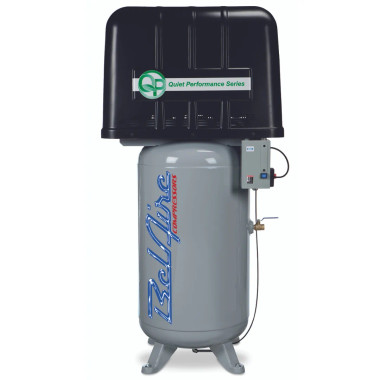

Belaire QP318VE 5-Hp 80G 2 Stage Qp Air Compressor
Ideal for work environments where space is at a premium. The BelAire QP compressors are built to provide the performance you have come to trust in an extremely quiet package that can be installed in the work area. A piston compressor with the noise level of a rotary screw provides exceptional value.
Features
- Low Sound Enclosure.
- Low Oil Level Protection.
- Automatic Tank Drain.
- Magnetic Starter.
- Cast Iron Cylinder.
- 80 Gallon Vertical ASME/CRN Tank.
- 100% Factory Tested at Full Pressure.
- High Temperature Shut Down.
Specifications
| Model | QP318VE |
| Voltage | 230 |
| Phase | 1 |
| PH | 5 |
| CFM @ 100 PSI | 18.6 |
| CFM @ 175 PSI | 16.6 |
| Tank | 80V Gallon |
| Max pressure | 175 PSI |
| Weight | 527 Lbs |
| Dimensions L x W x H | 39 x 25 x 80 Inches |
