Description

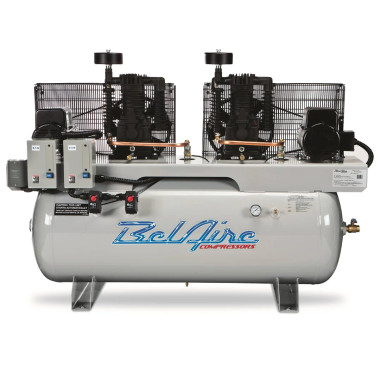

Belaire 3312D4 10HP 120H Gal. Horizontal Two Stage Three Phase Electric Duplex Air Compressor
This compressor comes complete with everything you need to optimize your work and minimize down time. The BelAire duplex compressors are available up to 20 HP and can deliver up to 50.50 acfm on single phase power. BelAire duplex compressors feature two pumps and motors, along with an alternator which ensures optimal performance.
Features
- MUST Have Three-Phase Electric Power.
- Solid Cast Iron Cylinder.
- Dual Pressure Switch Control.
- Tri-Voltage Motors (3 Phase).
- Magnetic Starters.
- Alternator.
- 100% Factory Tested at Full Pressure.
- ASME Tank and Safety Valves.
Specifications
| Model | 3312D4 |
| Voltage | 460 |
| Phase | 3 |
| PH | 2 x 5 |
| CFM @ 100 PSI | 37.0 |
| CFM @ 175 PSI | 33.2 |
| Tank | 120H Gallon |
| Max pressure | 175 PSI |
| Weight | 778 Lbs |
| Dimensions L x W x H | 77 x 27 x 56 Inches |
Downloads
Brochure
