Description

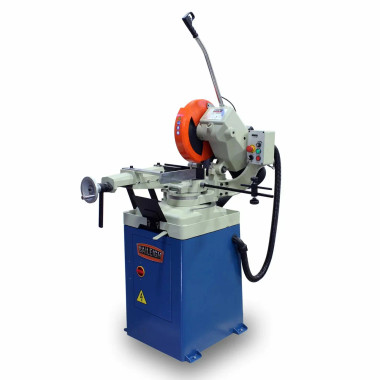

Baileigh CS-350EU Circular Cold Saw
This variable-speed manual cold saw will make burr-free cuts in larger pieces of material. The cast iron base and flood coolant system help the saw stay accurate for many years.
*Recommended for:
- Marine rails.
- Playground equipment.
- Hand railings.
- Various chassis applications.
- Other fabrication cutting jobs.
Features
- Features include: Standard 14” blade (included), 4.7” round tube capacity at 90°, and runs on 220-volt single-phase power which will work in almost any shop.
- Miters 45° left and right and can slot perpendicular to the material.
- Cold saw machine cuts through solids, tubing, and pipe.
- Fine-tune the variable speed from 24 to 120 rpm to improve cut quality.
- Inverter-driven motor lets you adjust the blade speed with a digital readout that shows the blade speed to assist with repeatability.
- 3 hp motor, coupled to a direct-drive gearbox, allows the blade to cut through the material chatter-free, so that blades last longer.
- European-style vise helps increase production with a taper lock system that speeds up clamping and unclamping.
- Vise clamps on both sides of the cut to reduce chatter and increase blade life while the serrated jaws provide maximum hold on the material.
- Thick cast iron base, mounted on a heavy steel stand, stabilizes the saw to ensure accurate cutting for many years.
- Flood coolant system allows for mill-like cuts, prolongs blade, and saw lifespan, and reduces operator effort while the powerful coolant pump lubricates the blade and washes metal chips away.
Specifications
| Model Number | CS-350EU |
| Motor (HP) | 3 hp |
| Solid Round at 45 Degrees (In.) | 3″ |
| Solid Round at 90 Degrees (In.) | 3.5″ |
| Style (Type) | Single Action with Cam Lock |
| Tubing Rectangle at 45 Degrees (In.) | 3.5″ x 2.8″ |
| Tubing Rectangle at 90 Degrees (In.) | 6.3″ x 3.5″ |
| Tubing Round at 45 Degrees (In.) | 4″ |
| Tubing Square at 45 Degrees (In.) | 3.5″ 3.5″ |
| Tubing Square at 90 Degrees (In.) | 4.7″ |
| Weight (Lbs.) | 720 |
*Specifications subject to change without notice.
WARNING: California Prop 65
