Description

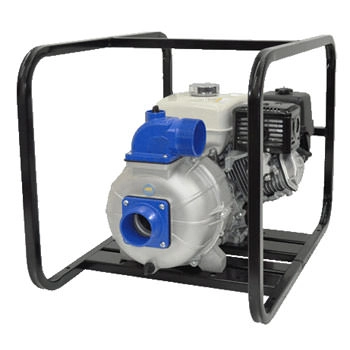

AMT Pumps – 3S9X Series – Engine Driven Trash Pumps
Manuals and Information:
Specification Sheet
IPT Portable High Volume, Self-priming Centrifugal Trash pumps include easy cleanout with replaceable cast iron impeller and volute that resist abrasion/wear. All pumps feature aluminum housing, cast iron wearparts, built-in check valve, suction strainer and heavy duty steel roll frame. Heavy duty cast iron flanges with male NPT threads that rotates in 90° increments. Easy access fill plug on discharge port.
- Cast Aluminum with Internal Cast Iron Wearparts for Durability
- Silicon Carbide/Viton® Mechanical Seal
- EPDM/EPR O-Rings Standard with Optional Viton®
- 3 in. or 4 in. Removable Male NPT Suction and Discharge Ports
- Discharge Rotates in 90° Increments
- Engine Options: Honda, B & S Vanguard Gasoline or Hatz 1B40 Diesel Engines
- Maximum Solids Handling up to 2 in.
- Maximum Flow up to 530 GPM
- Maximum Head up to 112 Ft.
- Self-Priming to 26 Ft.
- Wheel Kit Optional
