AMT Pumps – 3P9XLR, 3P9XHR & 3P9XZR – High Pressure Fire Pumps
Manuals and Information:
Specification Sheet

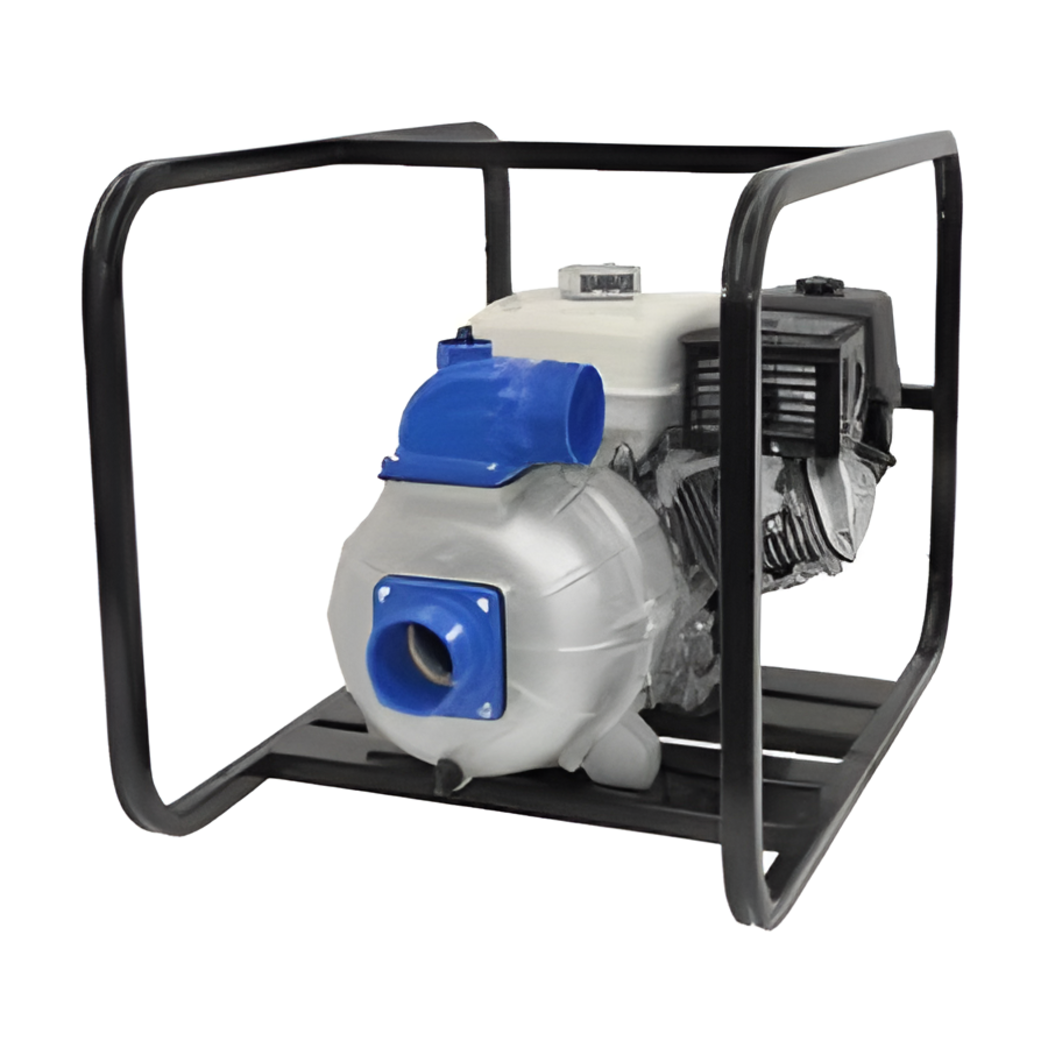

IPT 3 in. Engine Driven Portable High Pressure pumps are cast aluminum construction with cast iron volute and male NPT ports. Pump applications include fire protection and irrigation. These pumps are available with a wide choice of standard and heavy duty gasoline or diesel fueled engines. These pumps feature high efficiencyclosed cast aluminum impeller. All models come equipped with EPDM/EPR elastomers and seals. Most models include a heavy duty steel roll frame.
- Cast Aluminum Construction
- EPDM/EPR Mechanical Seals
- Optional Viton® Seal and Elastomers Available
- 3 in. Cast Iron Suction & Discharge Male NPT Port Sizes
- Maximum Flow up to 185 GPM
- Maximum Head up to 89 PSI
- Maximum Lift to 26 Ft.
- One Tool Serviceability
- Utilized for Fire Protection or Irrigation
- Discharge Port Rotates in 90° Increments
- Engine Options: Honda, LCT 306CC Gasoline or Hatz Diesel Engines
- Optional High Pressure Hose Kit and Wheel Kit Available
