Description

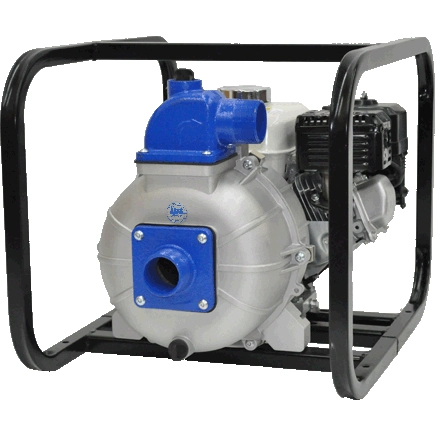

AMT Pumps – 2P5XHR – High Pressure Fire Pump
Manuals and Information:
Specification Sheet
IPT 2 in. Engine Driven Portable High Pressure pumps are cast aluminum construction with cast iron volute and male NPT ports. Pump applications include fire protection and irrigation. These pumps are available with a wide choice of standard and heavy duty gasoline or diesel fueled engines. These pumps feature high efficiency closed cast aluminum impeller. All models come equipped with EPDM/EPR elastomers and seals. Most models include a heavy duty steel roll frame
- Cast Aluminum Construction
- EPDM/EPR Mechanical Seals
- Optional Viton® Seal and Elastomers Available
- 2 in. Cast Iron Suction & Discharge Male NPT Port Sizes
- Maximum Flow up to 130 GPM
- Maximum Head up to 108 PSI
- Maximum Lift to 26 Ft.
- One Tool Serviceability
- Utilized for Fire Protection or Irrigation
- Discharge Port Rotates in 90° Increments
- Engine Options: Honda, Briggs & Stratton Gasoline or Hatz Diesel Engines
- Optional High Pressure Hose Kit and Wheel Kit Available
