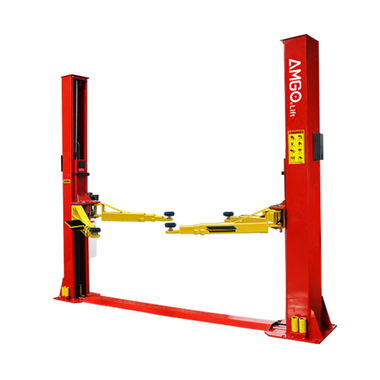

AMGO Hydraulics BP-9X 9000 Lbs Floorplate Symmetrical 2-Post Lift
Enjoys most features as BP-9, BP-9X is more advanced to construct wider, taller and stronger. The reinforced structure enhances lifting reliability, providing convenient service for a vast range of vehicles. The base plate design can be installed in any workshops or garages over 9.5 ft height.
Features
- Lifting capacity: 9,000 lbs.
- Commercial grade with enhanced structure, designed for professional workshops and home home garages.
- Symmetric four 3-stage retractable arms are suitable for more vehicles.
- Automatic arms restraint.
- Single-point manual safety lock release, simultaneously unlock both columns from one side.
- Dual-safety lock structure ensures additional safety.
- Self-lubricating UHMW polyethylene sliders.
- Areo sync cables come as standard.
- Comes with detachable toe guard and tool tray.
- Standard double-screw rubber pad ( pin dia 1/2” ) with 3” extension adapters.
Specifications
| Model | BP-9X | |
| Lifting Capacity | 9,000 lbs | |
| Lifting Time | 49 s | |
| Max. Lifting height: (w/o extension adapter) | A | 76 9/16″ ~ 78 7/16 “ |
| Max. Lifting height: (w/ extension adapter) | 79 9/16″ ~ 81 7/16 “ | |
| Max. Lock height: ( w/o extension adapter) | 75″ ~ 76 7/8 “ | |
| Max. Lock height: ( w/ extension adapter) | 78″ ~ 79 7/8 “ | |
| Overall Height | B | 111 7/8″ |
| Overall Width | C | 136 1/4″ |
| Drive-Thru Clearance | D | 100 13/16″ |
| Width Between Columns | E | 112 1/4″ |
| Minimum Pad Height | F | 3 3/4″ |
| Gross Weight | 1,581 lbs | |
| Motor | 2.0HP, 220V 60Hz, Single phase |
