Description

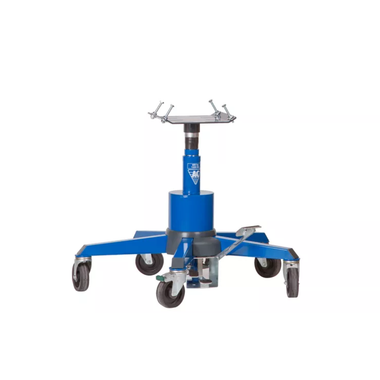

AME VLT6 Hydraulic Transmission Jack 0.6 Ton
Features
- Transmission jack with pneumatically controlled high speed.
- The 3 stage telescopic cylinder ensures a very low minimum height.
- 5 legs offers the best stability on the market.
- Simple operation by use of 3 pedals leaving both hands free for working.
- Pneumatically controlled high speed guarantees quick and efficient lifting.
- Large and robust swiveling wheels (2 with locks) offers optimum manoeuvrability.
- Built-in safety overload valve.
Specifications
| Model | VLT6 |
| Capacity | 0,6 Tons |
| Stroke | 47.05” |
| Min. height | 28.35” |
| Max. height | 75.39” |
| Height step 1 / 2 / 3 | 44.09” / 59.84” / 75.39” |
| Air capacity step 1 / 2 / 3 | 440 lb / 265 lb / 130 lb |
| Width | 37.40” |
| Wheel size | 4.92” |
| Air supply | 116,72-174 psi |
| Weight | 111 lbs – 53 Kg |
