Description

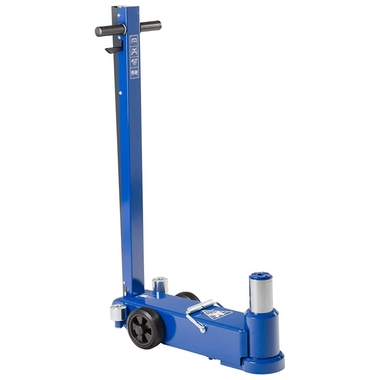

AME 25-1 Air Hydraulic Jack, 25 Ton Min height: 8.7″ Max height: 13.6″
Features
- Minimum height of 8.70 in. (220 mm).
- Designed for heavy-duty, intensive commercial use.
- Hard chromium plated piston rod for long life.
- Built-in safety overload valve.
- Hand-operated dead-man’s control for optimum safety whilst lifting and lowering.
Specifications
| Model | 25-1 |
| Capacity | 25 Tons |
| Min. height | 8.6” (220 mm) |
| Max. height | 13.6” (345 mm) |
| Frame length | 30.3” (770 mm) |
| Handle length | 45.7” (1160 mm) |
| Width (with wheels) | 12.0” (305 mm) |
| Air supply | 9-10 bar |
| Air consumption | 350 l/min |
| Weight | 137 lbs (62 Kg) |
Downloads
Flyer
