Description

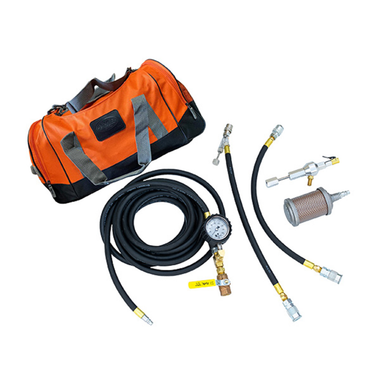

AME 24855 OTR 20 Foot Inflator/Deflator Kit with Large and Standard
Features
- Kit ideal for large AG and Construction OTR tire service inflation/deflation
- Promotes safety during inflation/deflation process.
- Keeps tire techs out of trajectory rim/wheel area “danger zone”.
- Comes equipped with all hoses and fittings in Hi-Vis Carrying Bag.
Inflation/ Deflation Kit Components include:
- (1) Air Muffler.
- (2) 20″ Hydraulic Hoses.
- (2) Standard Bore Core Remover and Inflation Chuck.
- Lock-on Chuck (shown on 20″ hose.
- Reduces inflation time by 50%.
- Features a more secure lock-on style chuck.
- Made of Durable steel, brass, and plastic.
- 1/4 Female NOT allows easy attachment to air hose.
- Ideal for nitrogen purging and inflation.
- Retractable core housing allows safe removal and replacement of valve core.
- (1) Large Bore Core Remover Tool
- Prevents core loss during tire inflation and deflation.
- Full bore inflator/deflator allows for rapid tire inflation and deflation.
- Lock-on chuck attaches securely to the valve.
- 360º swivel air inlet for easy access.
- Ideal for application in OTR, Ag, Construction equipment tire service inflation/deflation.
- (1) 20′ Inflation hose with Liquid Dial Gauge
- Equipped with Safety Quick-Connect Coupler for fast and easy connection.
- Hose rated at 300 PSI.
- 1/2″ Flow-Through On/OF Valve with 180 PSI Liquid Fill Gauge.
