Description

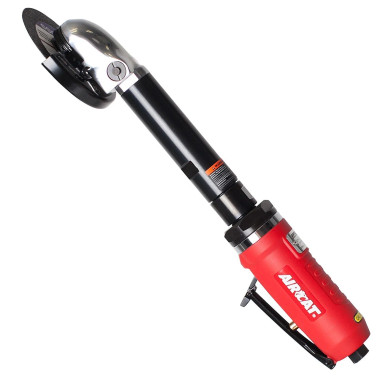

AirCat 6275-A 4″ Extended Inside Corner Cut-Off Tool With Spindle Lock (1.0 HP motor)
Features
- 14,000 RPM.
- 1.0 HP motor eliminates stall and increases reliability.
- Extended length for better reach. Get in where other tools fail to go!.
- Compact tapered gear housing with close-coupled grinding wheel.
- Reaches inside corners of as little as 30° with 4 wheel.
- Superior steel grade internal gears for longer life.
- Spindle lock for easy wheel change.
- 11 position rotational guard.
- Cut-off wheel sizes: 4” (1/16 x 3/8) (1/8 x 3/8)
Specifications
| Model No. | 6275-A |
| Wheel Size (in.) | 3-in. |
| Gears | Direct Drive |
| Cutting Capacity | 3/4″ Rolled Steel / 18 Gauge |
| Exhaust | Rear |
| Weight (lbs.) | 3.75 |
| Length (in.) | 15.5 |
| Free Speed (RPM) | 14.000 |
| Air Cons. (CFM) | 6.0 |
| Air Inlet (in) | 1/4 NPT |
| Rec. Hose Size (in.) | 3/8-in. |
| Noise Levels (dBA) | 86.0 |
