Description

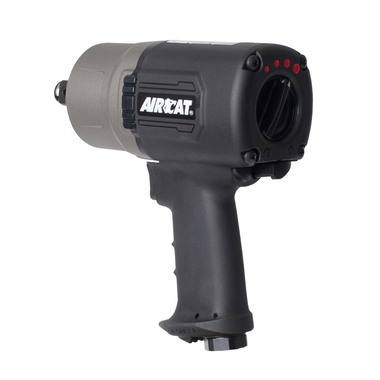

AirCat 1770-XL 3/4″ Composite Impact Wrench 1600 ft-lbs
Features
- Provides 1,400 ft-lb maximum torque and 1,600 ft-lb of loosening torque.
- Refined design twin hammer increases blow frequency and efficiency.
- Power management switch with three power settings.
- Molded-in buffers protect tool from side impact.
- Ergonomically designed grip and trigger provide ultimate operating comfort.
- Designed for heavy duty fleet maintenance and industrial MRO work.
- Combined through hole and friction ring socket retainer.
Specifications
| Model No. | 1770-XL |
| Square Drive (in.) | 3/4-in. |
| Air Cons. (CFM) | 8 |
| Bolt Capacity (in) | 1-in. |
| Air Inlet (in.) NPT | 3/8-in. |
| Rec. Hose Size (in.) | 1/2-in. |
| Weight (lbs.) | 7.4 |
| Length (in.) | 8.25 |
| Free Speed (RPM) | 6,500 |
| Impacts Per Minute (IPM) | 1300 |
| Max. Torque (ft-lb) | 1400 |
| Loosening Torque | 1600 |
| Noise dBA | 91.3 |
| Vibration m/sec² | 14.6 |
Downloads
Manual
Flyer
