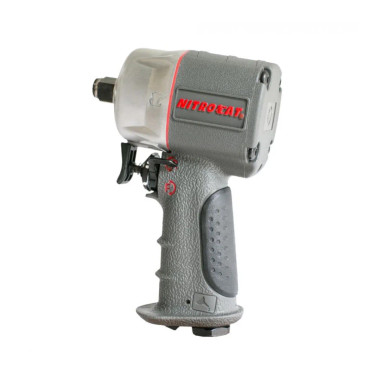

AirCat 1076-XL 3/8″ NITROCAT Composite Compact Impact Wrench
Features
- Provides 550 ft-lb maximum torque and 750 ft-lb of loosening torque.
- Low weight composite housing reduces weight to 2.5 Lbs.
- Reliable jumbo hammer mechanism delivers maximum power, while increasing reliability.
- Patented Silencing Technology reduces the noise level to (85 dBA).
- Patented grip has been ergonomically designed to perfectly fit the hand, providing unmatched comfort for the user.
- Patented trigger mounted combined forward/reverse and power management switch provides ultimate control and one-hand operation.
Specifications
| Model No. | 1076-XL |
| Square Drive (in.) | 3/8-in. |
| Air Cons. (CFM) | 8 |
| Bolt Capacity (in) | 9/16-in. |
| Air Inlet (in.) NPT | 1/4-in. |
| Rec. Hose Size (in.) | 3/8-in. |
| Weight (lbs.) | 2.50 |
| Length (in.) | 4.25 |
| Free Speed (RPM) | 9,000 |
| Impacts Per Minute (IPM) | 1650 |
| Max. Torque (ft-lb) | 550 |
| Loosening Torque (Ft-Lbs) | 750 |
| Noise dBA | 85.0 |
| Vibration m/sec² | 9.9 |
