Description
| Name | Part Number |
|---|---|
| ContiTech | 64557 |
| ContiTech | FD200-25511 |
| Firestone | 6962 |
| Firestone | W01-358-6962 |
| Firestone | W013586962 |
| Goodyear | 2B9607 |
| Goodyear | 2B9-607 |
| Hendrickson | B21323 |
| Hendrickson | S21323 |
| Attribute | Value |
|---|---|

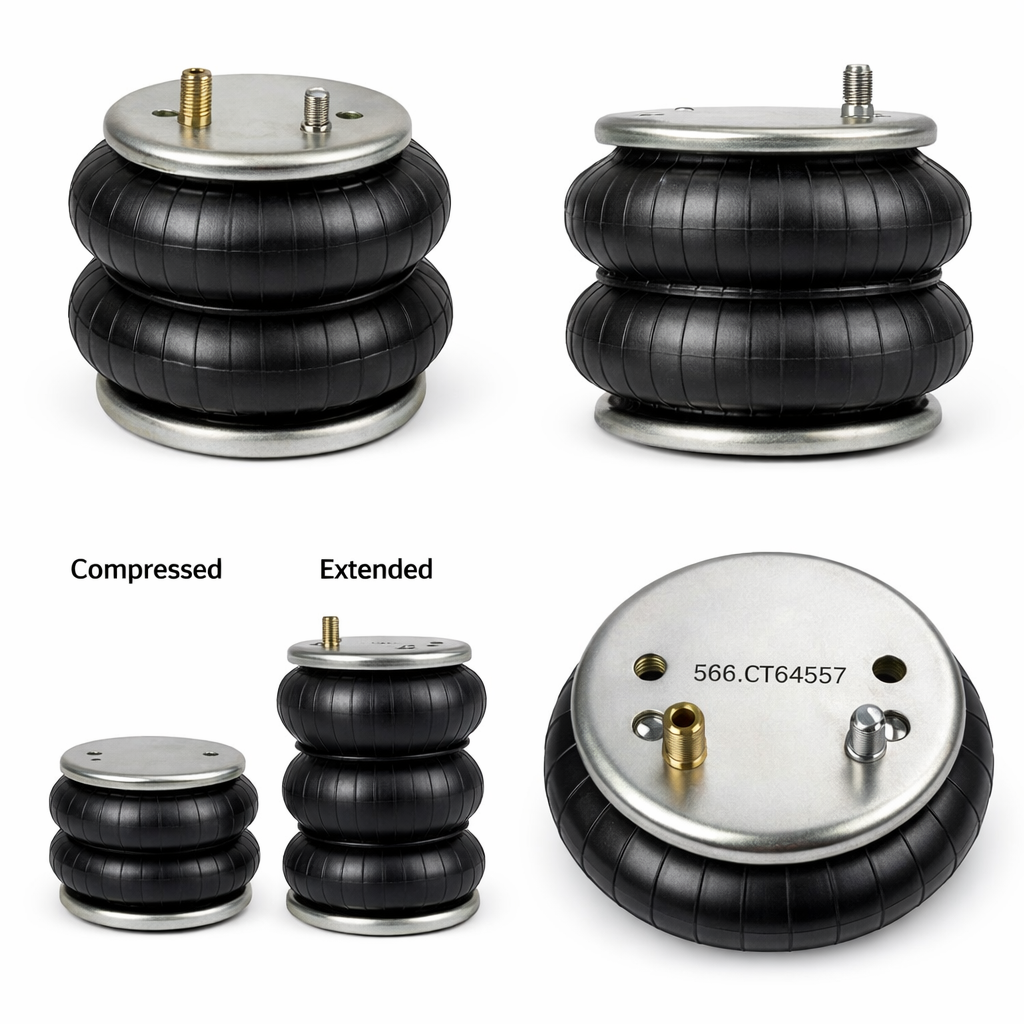

| Type | Double Convoluted Air Spring |
| Material | High-strength rubber + steel plates |
| Load Capacity @ 80 PSI | 3450 lbs |
| Top Plate Hole Qty | 2 |
| Bottom Plate Hole Qty | 2 |
| Min Height | 3.7 inch |
| Max Height | 13.5 inch |
| Max Diameter | 10.4 inch |
| Includes Bumper | Yes |
| Weight | 12.50 LB (Approx.) |
