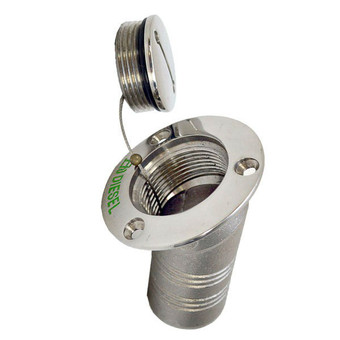

Description
| Angle: | 30° Degree |
| Cap Type: | Not Vented |
| Hose Connection Size: (Figure A) | 1-1/2″ |
| Mounting Flange Diameter See: (Figure B) | 2-7/8″ |
| Hose Barb Length: Figure C) | (3-1/4″ Long From Back Of Flange.) |
| Height See: (Figure D) | 3-1/2″ |
| Bolt Pattern: | 2″ Hole Centers |
| Cap Hole Opening: | 1-13/16″ |
| Material: | 316 Marine Grade Stainless Steel. |
| Cap Marking: | Marked Diesel. |
| Includes: | Cap Tether. |
| RELATED ITEMS: | |
| Key NOT INCLUDED (Required To Unscrew Cap) | Requires Key 351399 or 357399 (Click Here) |
| RELATED PRODUCTS: | SCROLL TO THE BOTTOM OF THIS PAGE |
