Description
| Name | Part Number |
|---|---|
| Phillips | 17-746C |
| Velvac | 032746C |
| Tectran | 10746C |
| Tramec Sloan | 452746C |
| Attribute | Value |
|---|---|

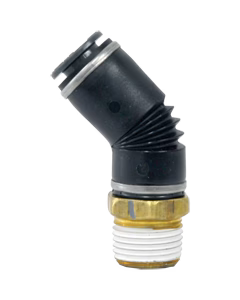

| Design Type | 45° Elbow with Swivel |
| Nominal Size | 1/2 Inch (PLC Standard) |
| Tube Size | 3/8 Inch |
| Thread Size | 1/2″ NPT |
| Thread Gender | Male |
| Connection Type | Push-to-Connect (PLC) |
| PLC Type | Power Line Carrier |
| Body Material | High-Strength Brass / Reinforced Composite |
| Seal Material | Nitrile Rubber (NBR) |
| Finish / Coating | Corrosion-Resistant / Anti-Oxidation |
| Swivel Function | 360° Rotational Movement |
| Working Pressure | Up to 150 PSI |
| Burst Pressure | Up to 500 PSI |
| Operating Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Vibration Resistance | High (Heavy-duty applications) |
| Flow Capacity | Optimized for efficient airflow |
| Leak Protection | Integrated sealing system for zero leakage |
| Installation Type | Push-In + Threaded Swivel End |
| Reusability | Yes (Disconnectable and reusable) |
| Compatibility | SAE J844 Nylon Air Brake Tubing |
| Standards Compliance | SAE J2494 / DOT FMVSS 571.106 |
| Application Type | Air Brake & Pneumatic Systems |
| Vehicle Compatibility | Heavy-Duty Trucks, Trailers, Buses |
| Environment Resistance | Resistant to oil, moisture, road salts, and debris |
| Orientation Flexibility | Ideal for angled routing and tight installations |
| Color / Appearance | Metallic / Black |
| Packaging Type | Individual / Bulk |
| Weight | 0.24 LB |
